BACKLIGHT STRIPS, AVAILABILITY, PRICES, AND REPLACEMENT

LED television backlight strips are among the most important (call 0723763173) components inside a modern LED/LCD television. Although the television panel produces the image, the backlight system provides the illumination that allows the picture to be visible. When the backlight system develops a fault, a television may still have sound, respond to the remote control and even produce a perfectly good picture signal, but the screen can appear completely dark.

At Pro-Logic Technologies Limited, we supply, identify, test and replace LED TV backlight strips for different television brands, models and panel configurations. Our workshop is located at Luthuli Avenue, Kangari Building, 3rd Floor, Room KA7, Nairobi CBD, where customers can bring televisions, LED strips and related components for professional assessment.

We work with different types of LED backlight assemblies and assist customers looking for replacement strips for televisions from brands such as Samsung, LG, Sony, TCL, Hisense, Skyworth, Vitron, Vision Plus, Von, JVC, Sharp, Sayona, Amtech and other LED/LCD television brands, subject to exact model and panel compatibility.

Contact: 0723763173
Email: info@prologictechnologies.co.ke
Website: prologictecnologies.co.ke

LED TV BACKLIGHT STRIPS SUPPLIER AND REPLACEMENT SERVICE IN NAIROBI

Finding the correct LED TV backlight is not simply a matter of buying a strip with the same television screen size. A 43-inch television, for example, can use several different backlight designs depending on the manufacturer, panel supplier, chassis, production version and screen technology.

This is why professional identification is important.

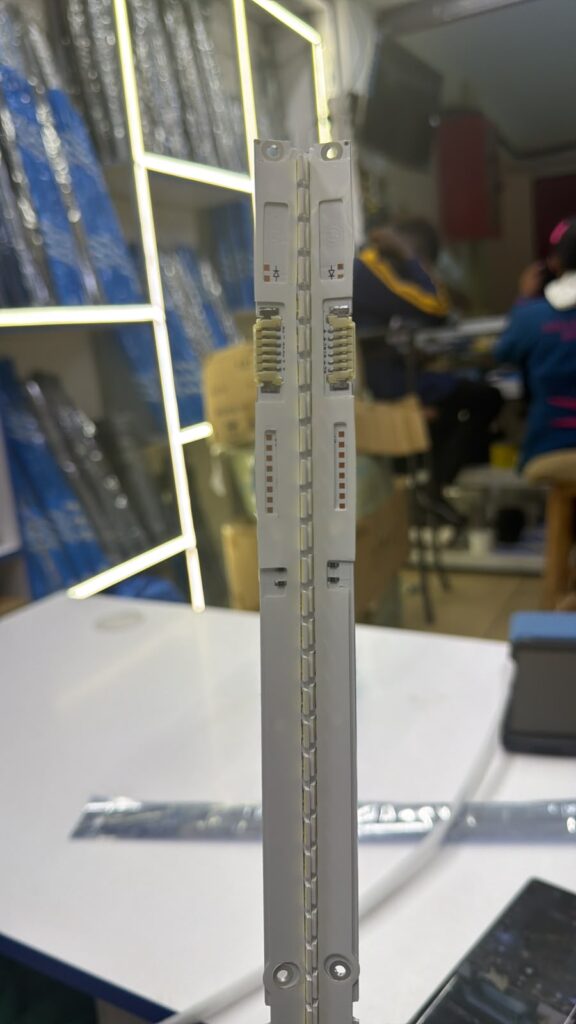

The photograph provided shows a long-format LED backlight assembly containing multiple LED sections, connectors and mounting points. Assemblies of this type are installed inside television panels and are designed to distribute light across the display area.

A backlight replacement must be selected carefully. The replacement should correspond with the television's actual panel configuration rather than relying only on the screen size.

At our Nairobi workshop, we can help identify a suitable replacement using information such as:

Television brand
Television model number
Panel number
Backlight strip code
Number of LED strips
Number of LEDs
Strip length
Strip width
Connector position
Connector type
LED arrangement
Mounting-hole position
LED lens arrangement
Electrical characteristics
Original strip design

This approach reduces the risk of installing an incompatible backlight.

WHAT IS AN LED TV BACKLIGHT STRIP?

An LED TV backlight strip is a lighting assembly installed behind an LCD television panel. The LEDs produce the light required for the LCD layer to display the image generated by the television's video processing system.

Unlike OLED televisions, where individual pixels generate their own light, conventional LED/LCD televisions require a separate illumination system.

The backlight normally consists of several components working together.

These can include:

LED strips
Individual LED chips
LED lenses
Reflector sheets
Diffuser sheets
Light guide components
LED driver circuitry
Connectors
Wiring
Mounting brackets
Optical sheets

The LEDs are positioned so that light is distributed across the panel as evenly as possible.

Depending on the television design, the backlight may be arranged along the edges of the screen or directly behind the LCD panel.

WHY DOES AN LED TV NEED A BACKLIGHT?

An LCD panel does not produce visible light by itself in the same way an OLED display does. It controls the passage of light through liquid-crystal cells.

The backlight provides the source of illumination.

When the television is operating correctly, the power supply delivers energy to the backlight driver. The driver regulates the current supplied to the LED strips. The LEDs then illuminate the rear of the LCD panel.

The optical layers spread and diffuse this light before it reaches the LCD layer.

The television's image-processing circuitry controls the LCD pixels to create the visible picture.

If the backlight fails, the image may still be present electrically but become almost impossible to see.

This explains one of the most common television complaints:

"The TV has sound but the screen is black."

In many cases, this symptom can be related to the LED backlight system.

COMMON SYMPTOMS OF A FAILED TV BACKLIGHT

A defective backlight can produce several different symptoms.

1. TV HAS SOUND BUT NO VISIBLE PICTURE

This is one of the most common symptoms.

The television may switch on normally. You may hear channels, applications or external devices producing sound. The standby indicator may operate normally. However, the screen appears black.

A technician should determine whether the television is actually producing a picture without illumination or whether another circuit has failed.

2. SCREEN IS VERY DIM

Sometimes the backlight does not fail completely.

Some LEDs may continue operating while others become weak or intermittent.

The result can be a very dark image.

The television may appear to be working, but the picture is difficult to view even in a moderately lit room.

3. SCREEN FLASHES ON AND THEN GOES DARK

Another common symptom is a television that illuminates briefly when switched on and then becomes dark.

This can happen when the LED driver detects an abnormal load.

For example, one or more LED strings may have an open circuit. The driver attempts to start the backlight, detects an abnormal electrical condition and shuts down the backlight output as a protection measure.

This requires proper testing before replacing parts.

4. PART OF THE SCREEN IS DARK

If only one area of the display is darker than another, the problem may involve one section of the backlight.

Depending on the design, the television may contain multiple strips or multiple LED strings.

A defective section can create:

Dark horizontal areas
Dark vertical areas
Uneven illumination
Bright and dark zones
Patches
Shadows

5. BRIGHT SPOTS ON THE SCREEN

Sometimes an LED lens becomes detached from its original position.

Because the optical system is designed around a specific LED-to-lens relationship, a displaced lens can create a bright circular spot.

The television may still display a picture, but bright spots become visible against light backgrounds.

6. FLICKERING BACKLIGHT

A television with a failing LED strip or an unstable LED driver may produce flickering.

The problem may be caused by:

Weak LEDs
Open LED strings
Poor connections
Driver instability
Power supply problems
Aging LED strips
Incorrect replacement strips

A proper diagnosis is required because flickering is not automatically proof that the LED strips are defective.

LED BACKLIGHT FAILURE DOES NOT ALWAYS MEAN THE TV PANEL IS BAD

This is an important distinction.

Customers sometimes assume that a black screen automatically means the television panel is damaged.

That is not necessarily true.

A television contains many separate systems, including:

Main board
Power supply board
LED driver
T-Con circuitry
LCD panel
Backlight system
Speakers
Remote-control receiver
Wi-Fi/Bluetooth circuitry
HDMI interfaces
Software and control circuitry

A television can have a perfectly functional LCD panel but a defective backlight.

This is why diagnosis should be performed before concluding that a panel needs replacement.

LED BACKLIGHT STRIP IDENTIFICATION SERVICE

One of the services we provide is identification of the correct LED backlight.

Customers can bring the old strip to our workshop or provide clear photographs containing useful identifying information.

Ideally, provide:

Television model number

Panel number

Photograph of the old backlight

Photograph of the connectors

Photograph of the LED arrangement

Photograph of the television label

If the strip has a printed part number or code, include a clear photograph of that marking.

The more information available, the easier it is to determine compatibility.

WHY SCREEN SIZE ALONE IS NOT ENOUGH

Many customers search for a "55-inch backlight" or "43-inch LED strip."

Screen size is useful, but it is not sufficient.

Two 55-inch televisions can use completely different backlight assemblies.

They may differ in:

Number of strips
Strip length
Number of LEDs
LED voltage
Connector arrangement
Mounting points
Lens design
LED spacing
Panel manufacturer
Backlight driver characteristics
Strip code

Therefore, we recommend confirming the exact television and panel information before purchasing.

LED TV BACKLIGHT STRIPS FOR SAMSUNG TELEVISIONS

Samsung LED televisions use numerous backlight configurations depending on model and panel version.

A Samsung television may require a particular set of LED strips that cannot simply be substituted with any strip of the same screen size.

When ordering a Samsung backlight, provide the complete model number.

This helps determine the appropriate replacement.

We can assist with backlight identification and replacement for selected Samsung LED television models, subject to availability.

LED TV BACKLIGHT STRIPS FOR LG TELEVISIONS

LG televisions also use different LED backlight configurations.

Some models have edge-lit arrangements while others use direct LED backlighting.

The exact replacement depends on the television's panel and internal construction.

Before purchasing an LG backlight, customers should provide the complete model and, where possible, the panel number.

SONY LED TV BACKLIGHT REPLACEMENT

Sony televisions use different panel and backlight designs across their model ranges.

A Sony television that has a black screen can have several possible causes, including backlight failure, power problems, driver faults or other circuitry.

We can inspect the television and determine whether the backlight system is responsible.

Where replacement strips are available, we can assist with sourcing and installation.

TCL LED BACKLIGHT STRIPS

TCL televisions are available in many different screen sizes and generations.

Backlight configuration can vary between models.

For accurate identification, provide the TCL model number and a photograph of the original backlight assembly where possible.

We can help identify compatible replacement strips and perform professional installation.

HISENSE TV BACKLIGHT REPLACEMENT

Hisense LED televisions also use different backlight configurations.

A replacement should be selected based on the exact model and panel rather than screen size alone.

If your Hisense television has sound but no visible picture, the backlight should be tested as part of the diagnostic process.

SKYWORTH, VITRON, VISION PLUS, VON AND OTHER LED TV BACKLIGHTS

We also handle backlight identification and replacement for selected Skyworth, Vitron, Vision Plus, Von, JVC, Sharp, Sayona, Amtech and other LED television models.

Availability varies according to the model and current spare-parts stock.

Customers are encouraged to send the television model number before travelling if they want to confirm whether a particular replacement is available.

DIRECT LED AND EDGE LED BACKLIGHTING

There are different ways manufacturers arrange LEDs inside a television.

Two common arrangements are direct LED and edge LED.

DIRECT LED BACKLIGHTING

In a direct LED design, LED strips are positioned behind the LCD panel.

The LEDs illuminate the panel from behind.

This arrangement is common in many television designs and can use multiple horizontal or vertical strips.

The photograph provided is an example of a long LED backlight assembly.

EDGE LED BACKLIGHTING

In an edge-lit television, LEDs are positioned around the edges of the display.

Light is distributed through an optical system.

Edge-lit designs can use different types of LED bars and optical components.

The replacement procedure differs from direct-lit televisions.

WHY PROFESSIONAL BACKLIGHT REPLACEMENT IS IMPORTANT

Television panels are extremely delicate.

During backlight replacement, the LCD panel normally has to be separated from the television chassis.

This requires care because the panel can crack or develop permanent damage if handled incorrectly.

The optical sheets must also remain in the correct order and orientation.

A technician should pay attention to:

Panel handling
Flex cables
Diffuser sheets
Reflector sheets
Optical films
LED connectors
Strip positioning
Screws
Clips
Panel frame
Grounding
Backlight wiring

Improper assembly can result in:

Uneven lighting
Bright spots
Dark areas
Dust spots
Pressure marks
Lines on the screen
Panel cracks
Damaged flex cables

Professional handling helps reduce these risks.

LED BACKLIGHT REPLACEMENT PROCESS

The exact procedure varies according to the television, but a professional repair generally follows several stages.

STEP 1: TELEVISION INSPECTION

The television is examined to establish the reported fault.

We determine whether the television:

Powers on
Produces sound
Responds to the remote
Displays a standby indicator
Produces an image
Illuminates the backlight
Has intermittent operation

STEP 2: BACKLIGHT DIAGNOSIS

The technician checks the backlight system and related circuitry.

This can include testing the LED driver output, checking connectors and testing the LED strings using suitable equipment.

The objective is to establish whether the backlight is actually defective.

STEP 3: IDENTIFICATION OF THE ORIGINAL STRIPS

The television may need to be opened to identify the original backlight configuration.

The technician checks the markings, dimensions and arrangement.

STEP 4: REMOVAL OF THE OLD BACKLIGHT

The LCD panel is handled carefully while accessing the backlight assembly.

Depending on the design, defective strips are removed and replaced.

STEP 5: INSTALLATION OF THE REPLACEMENT

The replacement strips are positioned correctly.

The connectors must be securely fitted.

The strips must sit correctly within their intended mounting positions.

STEP 6: TESTING

After installation, the television is tested before final assembly.

The technician checks:

Illumination
Uniformity
Brightness
Flickering
Dark areas
Connector operation
Picture visibility

STEP 7: FINAL ASSEMBLY

Once the system has been confirmed to operate correctly, the television is reassembled carefully.

HOW TO ORDER AN LED TV BACKLIGHT FROM US

If you need a replacement LED backlight, you can contact us before visiting the workshop.

Send:

1. TV brand

2. Complete model number

3. Screen size

4. Photograph of the television label

5. Photograph of the old LED strips if available

6. Photograph of any printed code on the strip

7. Description of the fault

This information allows us to determine the likely replacement and advise you about availability.

LED BACKLIGHT STRIPS FOR SALE IN NAIROBI

We supply selected LED TV backlight strips and related television spare parts.

Stock availability changes according to demand and model.

For current pricing, customers should contact us with the exact backlight information.

For price enquiry and availability: 0723763173

We do not recommend purchasing a backlight solely because it is advertised as "universal" or because the screen size appears identical.

Correct compatibility is important.

CAN A SINGLE LED BE REPLACED INSTEAD OF THE WHOLE STRIP?

In some circumstances, individual LED components can be repaired or replaced.

However, this is not always the best long-term solution.

If one LED has failed, other LEDs on the same strip may also have experienced thermal stress and aging.

A television that has operated for many years may have several LEDs approaching failure.

Replacing the complete strip set can sometimes provide a more consistent result.

The appropriate solution depends on:

Television condition
LED strip availability
Cost
Number of failed LEDs
Age of the television
Original strip condition
Customer preference

WHY LED BACKLIGHTS FAIL

LED backlights can fail for several reasons.

HEAT

Heat is one of the major factors affecting LED lifespan.

LEDs generate heat while operating.

If heat is not adequately managed, LED junction temperature can increase.

Over time, thermal stress can contribute to LED degradation.

AGE

LED components gradually deteriorate through normal operation.

A television used for many hours every day may eventually develop backlight problems.

EXCESSIVE BACKLIGHT BRIGHTNESS

Operating the backlight continuously at maximum brightness can increase thermal and electrical stress.

Some televisions allow the user to adjust backlight intensity.

Lower operating levels can reduce stress on the LEDs in certain designs.

POWER SUPPLY PROBLEMS

An abnormal power supply or LED driver can also cause backlight failure.

This is why replacing the strips without testing the driver can be a poor repair strategy.

LED OPEN CIRCUIT

An individual LED can develop an open circuit.

Because LEDs may be arranged in series strings, one failed component can interrupt the electrical path for an entire section.

LED SHORT CIRCUIT

An LED can also fail short.

The driver may respond differently depending on the television design.

LED BACKLIGHT DRIVER PROBLEMS

The LED strips are not the only part of the backlight system.

The LED driver controls the electrical power supplied to the LEDs.

A faulty driver can produce symptoms that resemble bad LED strips.

Possible driver problems include:

No output
Incorrect output
Current regulation problems
Protection shutdown
Component failure
Poor solder joints
Capacitor problems
MOSFET failure
Controller IC failure

Therefore, professional diagnosis should determine whether the fault lies in the strips, driver or another circuit.

TV BACKLIGHT VOLTAGE TESTING

LED strips operate at specific electrical conditions.

Depending on the design, multiple LEDs can be connected in series.

The total voltage required by a string therefore depends on the number and type of LEDs.

A technician must use appropriate testing equipment and procedures.

Applying an incorrect voltage directly to a television backlight can damage the LEDs.

This is another reason why replacement should be performed by a trained technician.

BACKLIGHT CONNECTORS

The connector arrangement shown in the photograph is an important part of identification.

Even when two LED strips appear physically similar, their connectors may be different.

Important connector characteristics include:

Number of pins
Pin arrangement
Connector orientation
Positive and negative connections
String configuration
Mechanical location

A compatible replacement should have the appropriate electrical and mechanical configuration.

LED BACKLIGHT STRIP CODES

Many manufacturers print identification information directly on the strip.

A code can help determine:

Strip family
Manufacturing version
Panel compatibility
LED configuration
Replacement part number

Customers should photograph this information clearly when requesting a replacement.

A blurry photograph can make identification difficult.

WHY THE ORIGINAL STRIP SHOULD BE KEPT

If you remove an old LED strip, do not throw it away immediately.

The original component can contain useful identification information.

It can help a technician compare:

Length
LED spacing
Connectors
Mounting points
Strip markings
LED quantity
Electrical configuration

Keeping the original strip can therefore simplify the identification process.

LED TV BACKLIGHT REPLACEMENT IN NAIROBI CBD

Our workshop is located at:

Luthuli Avenue, Kangari Building, 3rd Floor, Room KA7, Nairobi CBD.

Customers from different parts of Nairobi can bring televisions for inspection and repair.

We serve customers looking for:

LED TV backlights
Backlight replacement
TV repair
LED strip identification
TV spare parts
Power boards
Main boards
LED drivers
Television components

LED BACKLIGHT SERVICES FOR TV REPAIR TECHNICIANS

We also understand that technicians sometimes need replacement LED strips for customer repairs.

If you are a TV repair technician looking for a particular backlight assembly, provide the exact strip information.

Where stock is available, we can assist with supply.

This can be useful for technicians working on:

Samsung TVs
LG TVs
Sony TVs
TCL TVs
Hisense TVs
Skyworth TVs
Vitron TVs
Vision Plus TVs
Von TVs
JVC TVs
Sharp TVs
Sayona TVs
Other LED televisions

BUYING LED BACKLIGHTS FOR TV REPAIR BUSINESSES

Repair businesses often require different backlight types.

However, keeping large quantities of every possible model can be expensive.

A practical approach is to identify the exact replacement required for each repair.

When contacting us, provide the model and strip information so that we can check the available options.

LED TV BACKLIGHTS AND TELEVISION SCREEN REPAIR

Backlight replacement should not be confused with LCD panel replacement.

The LCD panel is responsible for controlling the image.

The backlight provides illumination.

A television can therefore have:

A good panel + bad backlight

A bad panel + good backlight

A good panel + bad power supply

A good panel + bad main board

or multiple faults simultaneously.

Correct diagnosis is therefore essential.

CAN A BLACK TV SCREEN BE REPAIRED?

In many cases, yes.

A black screen can have multiple causes.

If the television is producing sound and the image can be faintly observed using a suitable inspection method, the backlight becomes an important area to investigate.

However, a black screen can also result from:

Main board faults
T-Con problems
Power supply failure
Panel failure
Software problems
Loose connections
LED driver faults

A technician should identify the actual cause before recommending replacement.

WHY WE TEST BEFORE QUOTING A FINAL REPAIR

Different faults require different solutions.

For example, replacing LED strips will not solve a television with a failed LCD panel.

Similarly, replacing a power board will not necessarily solve a defective LED strip.

Testing helps prevent unnecessary parts replacement.

For customers who only need the replacement strip, we can assist with identification based on the information available.

For customers bringing a complete television, we can diagnose the fault and recommend the appropriate repair.

LED BACKLIGHT REPLACEMENT FOR LARGE-SCREEN TELEVISIONS

Large televisions require additional care because their panels are physically larger and more difficult to handle.

Large-screen models may use longer strips or a larger number of strips.

Panel handling becomes particularly important.

The larger the panel, the greater the risk of bending or twisting it during disassembly.

Professional handling is therefore recommended for large televisions.

LED BACKLIGHT REPLACEMENT FOR SMALL AND MEDIUM TVS

Smaller televisions also use different backlight configurations.

A smaller television is not necessarily easier to repair because the internal layout can be compact and connectors can be delicate.

The same principle applies:

Identify the correct strip before replacement.

BACKLIGHT STRIP REPLACEMENT VERSUS BACKLIGHT REPAIR

Backlight "repair" can mean different things.

A technician may:

Replace individual LEDs
Replace an entire strip
Replace the complete strip set
Repair a connector
Repair wiring
Repair an LED driver
Replace the LED driver
Correct a power supply problem

The correct approach depends on the diagnosis.

For customers seeking reliability, replacing an entire matched set can sometimes be preferable to replacing only one failed LED.

LED LENS DAMAGE

LED strips often use small optical lenses over individual LEDs.

These lenses distribute light across the LCD panel.

If a lens becomes loose, displaced or damaged, the screen can develop a bright spot.

This is one reason technicians should inspect the optical system carefully during backlight service.

UNEVEN TV BACKLIGHTING

Uneven illumination can appear as:

Bright corners
Dark corners
Bright horizontal bands
Dark horizontal bands
Circular bright spots
Shadow areas
Clouding
Patchy illumination

Not every uneven-lighting problem is caused by the LED strip itself.

The optical layers can also contribute.

Correct assembly is therefore important after backlight replacement.

DUST AND OPTICAL FILMS

During panel disassembly, dust can become trapped between the optical layers.

A small particle can become visible as a dark spot when the television is switched on.

Technicians should therefore keep the working environment and panel components as clean as reasonably possible during assembly.

LED BACKLIGHT REPLACEMENT QUALITY

A professional backlight replacement should aim for:

Correct compatibility
Secure connections
Proper strip positioning
Uniform illumination
Correct electrical operation
Clean optical assembly
Safe panel handling
Proper final testing

Simply making the television light up is not the only objective.

The lighting should also be reasonably uniform and stable.

WHAT INFORMATION SHOULD YOU SEND BEFORE BUYING?

When contacting us, send a photograph of the television label.

The label normally contains the model number.

For example, the model may contain a combination of letters and numbers.

Do not assume that a similar-looking model uses the same backlight.

Also provide a photograph of the original strip if it has already been removed.

PRICE OF LED TV BACKLIGHT STRIPS IN NAIROBI

The price of an LED backlight depends on several factors.

These can include:

Television brand
Model
Screen size
Panel type
Number of strips
Strip design
Availability
Original or compatible replacement
Complete set versus individual strip
Installation requirement

Because of these variables, it is better to request a price using the exact model or strip information.

For a current price enquiry, contact 0723763173.

Send the model number and photographs where possible.

DO NOT BUY A BACKLIGHT ONLY BY SCREEN SIZE

A customer may say:

"I need a 50-inch backlight."

That information is useful, but incomplete.

We may still need the:

Brand
Model
Panel number
Strip code
Connector type

This prevents confusion between similar-looking products.

LED BACKLIGHT DELIVERY AND SUPPLY

Customers outside Nairobi can contact us to enquire about availability and delivery arrangements.

Before arranging delivery, confirm:

TV model
Backlight code
Quantity required
Complete set or individual strip
Delivery destination

This reduces the possibility of sending an incompatible part.

LED BACKLIGHTS FOR TECHNICIANS OUTSIDE NAIROBI

Customers and repair technicians from areas outside Nairobi can contact us with their requirements.

We can assist with identification based on photographs and model information.

Availability depends on current stock.

The exact replacement should always be confirmed before payment or installation.

TV BACKLIGHT REPLACEMENT IN KENYA

LED televisions are used extensively throughout Kenya.

Customers from Nairobi and other counties may require replacement backlights for televisions that develop dark-screen or illumination problems.

Depending on the television model and available parts, replacement LED strips can be sourced and supplied.

COMMON QUESTIONS ABOUT LED TV BACKLIGHT STRIPS

Can you sell LED TV backlight strips?

Yes. We supply selected LED TV backlight strips depending on current stock and exact compatibility.

Can you identify a backlight from a photograph?

A photograph can provide useful information, especially if it clearly shows the strip markings, connectors and LED arrangement. The TV model and panel information may still be required for final confirmation.

Can you replace the backlight?

Yes. We provide TV backlight diagnosis and replacement services at our Nairobi workshop.

Can you repair a TV with sound but no picture?

Yes. We can diagnose the television to determine whether the fault involves the backlight or another circuit.

Do all 55-inch TVs use the same backlight?

No. Different 55-inch televisions can use completely different backlight systems.

Do all Samsung TVs use the same LED strips?

No. Samsung uses different backlight configurations across different models and panel versions.

Can I replace one LED instead of the whole strip?

In some cases, individual LED repair is possible. The best solution depends on the condition of the complete strip set and the television.

Can a faulty backlight damage the TV?

A defective LED string can cause the driver to enter protection or operate abnormally. Other electrical faults may also exist, so proper diagnosis is recommended.

How do I get the correct price?

Send the television model number or clear photographs of the television label and original backlight.

SIGNS THAT YOU MAY NEED LED BACKLIGHT REPLACEMENT

Consider having the backlight system tested if your television:

Has sound but a black screen
Turns on and immediately goes dark
Flashes before going dark
Has a very dim image
Has dark areas
Has uneven brightness
Has bright circular spots
Has intermittent illumination
Has backlight flickering
Produces an image that is only visible under strong external light

These symptoms do not automatically confirm a backlight failure, but they justify professional testing.

WHY LED BACKLIGHT STRIPS ARE IMPORTANT FOR TELEVISION REPAIR

The backlight is a fundamental part of the display system.

Without adequate illumination, the picture produced by the LCD panel cannot be properly viewed.

A good backlight replacement can restore normal screen illumination when the original strips have failed and the remaining television circuits are functioning correctly.

PROFESSIONAL TV BACKLIGHT SERVICE IN NAIROBI

At Pro-Logic Technologies Limited, our television repair services cover more than simply changing components.

We aim to identify the actual fault and determine the appropriate repair.

Our services can include:

TV diagnosis
LED backlight testing
LED strip replacement
LED driver diagnosis
Power board diagnosis
Main board diagnosis
TV screen fault diagnosis
TV power problems
Backlight flickering diagnosis
Dark-screen diagnosis
Television spare parts supply

Our main workshop is located at:

Luthuli Avenue, Kangari Building, 3rd Floor, Room KA7, Nairobi CBD.

ORDER YOUR LED TV BACKLIGHT STRIPS TODAY

If you need a replacement LED TV backlight, do not guess the part based only on screen size.

Send us the TV brand, model number, panel information and photographs of the original backlight where possible.

We can then assist with identifying the correct replacement and provide a price enquiry based on the specific part.

CALL OR WHATSAPP: 0723763173

EMAIL: info@prologictechnologies.co.ke

WEBSITE: prologictecnologies.co.ke

WORKSHOP: LUTHULI AVENUE, KANGARI BUILDING, 3RD FLOOR, ROOM KA7, NAIROBI CBD

LED TV BACKLIGHT STRIPS — SUPPLY, IDENTIFICATION, TESTING AND REPLACEMENT

Whether you are a television owner with a dark screen, a technician looking for a replacement strip, or a customer searching for a specific LED backlight assembly, accurate identification is the first step.

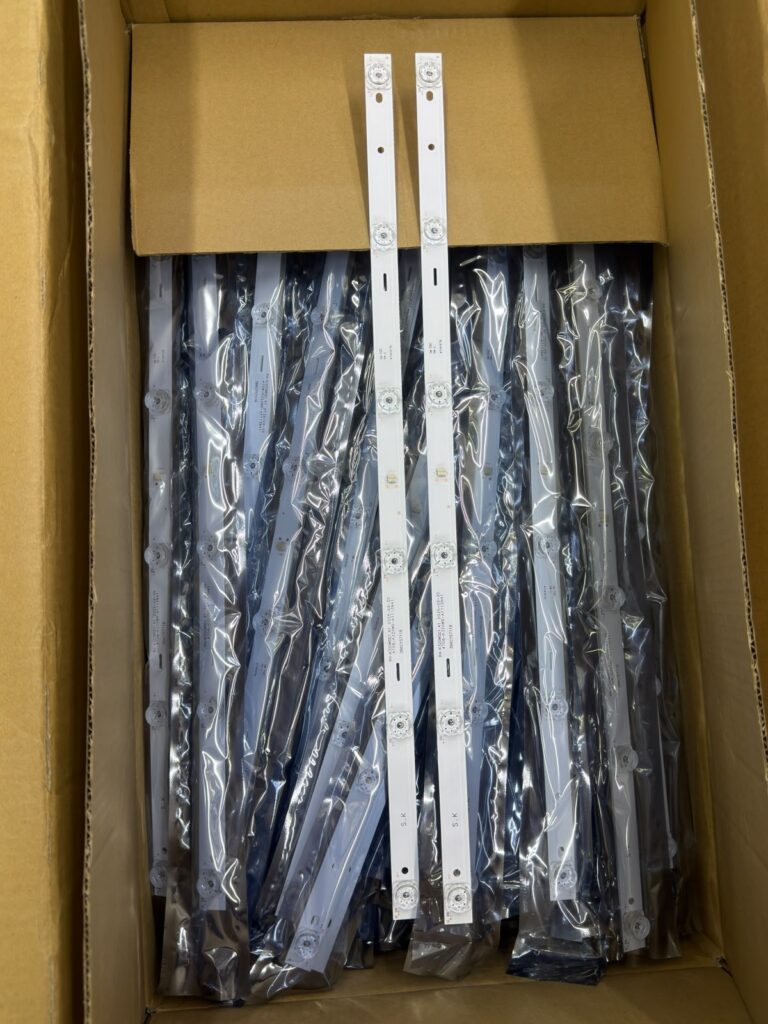

The LED backlight shown in the supplied photograph demonstrates the type of long-format LED lighting assembly used in television display systems. Its physical construction, connectors, LED arrangement and mounting configuration are all important when identifying a compatible replacement.

Do not rely on appearance alone.

Two strips may look almost identical but have different electrical characteristics or connector configurations.

Likewise, two televisions with the same screen size can use completely different backlight sets.

Our team can assist customers in Nairobi and other parts of Kenya with backlight identification, supply and professional replacement.

SEND YOUR TV MODEL FOR A PRICE ENQUIRY

For faster assistance, send:

TV BRAND + MODEL NUMBER + PHOTO OF LABEL + PHOTO OF BACKLIGHT

We will use the information to determine the appropriate replacement options available.

CALL/WHATSAPP 0723763173

PRO-LOGIC TECHNOLOGIES LIMITED

LUTHULI AVENUE, KANGARI BUILDING, 3RD FLOOR, KA7, NAIROBI CBD

EMAIL: info@prologictechnologies.co.ke

WEBSITE: prologictecnologies.co.ke
